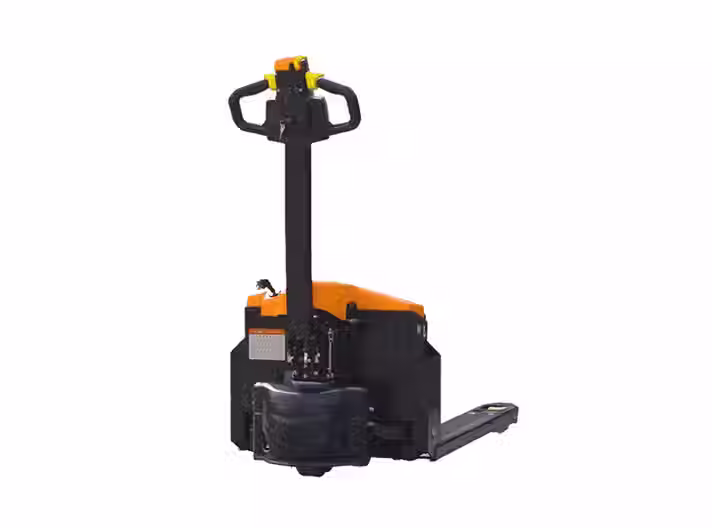

HUBMAX Li-Ion 2.5 Ton Hand Pallet
The HUBMAX 2.5 Ton Li-Ion Hand Pallet Truck is built for demanding warehouse environments requiring higher load capacity and continuous pallet handling. Its fast-charging Li-ion battery provides strong runtime efficiency for FMCG warehouses, 3PL hubs, distribution centers, and industrial facilities. The 2.5T model offers smooth electric lifting, stable load movement, and controlled handling under heavier pallet load
HUBMAX Electric Forklifts
HUBMAX Reach Trucks are engineered for high-density warehouse operations in India, delivering powerful lift performance, precise control, and exceptional stability in narrow aisles. Our reach truck range includes 1.5 Ton, 2.0 Ton, and 2.5 Ton models powered by Li-Ion and Lead-Acid batteries ideal for electric reach truck applications, multi-shift workloads, and demanding warehouse environments.
HUBMAX Electric Hand Pallet Truck 2.5 Ton Specifications & Features
HUBMAX Electric HPT 2.5 is engineered for stable load movement, smooth manual lifting, and reliable warehouse performance
HUBMAX Electric Hand Pallet -- 2.5 Ton Key Specification and features
Specification | ㅤ |
|---|---|
Capacity | 2,500 kg |
Fork Size | 1150×550 / 1220×685 mm |
Lowered Height | 80 mm |
Turning Radius | 1,600 mm |
Aisle Width | 1,850–1,950 mm |
Service Weight | ~300–340 kg |
Performance | ㅤ |
|---|---|
Gradeability | 10% / 12% |
Braking | Electromagnetic |
Travel Speed (L/U) | 5.0 / 5.5 km/h |
Drive & Hydraulics | ㅤ |
|---|---|
Lift Motor | DC 1.2–1.5 kW |
Battery Options: | 24V/60–80 Ah Li-ion, 24V/210–240 Ah Lead Acid |
Hydraulic Pump | 180–200 bar |
Drive Motor | AC 1.5 kW |
Electrical & Control | ㅤ |
|---|---|
Display | Battery indicator + error codes |
Protection | IP54 controller enclosure |
Controller | Curtis / ZAPI Mini AC |
Safety |
|---|
Auto cut-off at 10% battery |
Overload protection |
Travel speed reduction in tight turning |
Emergency reverse button |
Ideal For |
|---|
Retail stores |
FMCG & light logistics |
Short-distance pallet transfers |
HUBMAX Easy Steering in Tight Spaces
Compact wheelbase enables smooth and effortless movement
HUBMAX Strong Hydraulic Pump
Ensures smooth, controlled lifting with minimal hand effort
Compact Wheelbase EffortLess movement
Designed to provide lift performance, precise load control
Long Service Life with Low Maintenance
Simple mechanical design requires basic lubrication and oil
Download Section
Access technical documentation and resources
HUBMAX Product Brochure
Detailed technical specifications Sheet for This HUBMAX models and configurations Download from below button
Safety & Maintenance Guide
Comprehensive safety procedures and maintenance guidelines for HUBMAX equipment
Other HUBMAX MHE Solutions
Explore additional HUBMAX material handling solutions designed to support specialized warehouse, logistics, and industrial requirements.
Top things to know about HUBMAX Li-Ion 2.5 Ton Hand Pallet
Essential specifications, operating advantages, and application details for informed equipment selection
Long Service Life with Low Maintenance
Simple mechanical design requires basic lubrication and oil checks
Easy Steering in Tight Spaces
Compact wheelbase enables smooth and effortless movement
Compact wheelbase effortless movement
Simple mechanical system requires basic lubrication
HUBMAX Strong Hydraulic Pump
Ensures smooth, controlled lifting with minimal hand effort
HUBMAX Used MHE
Cost-effective used MHE solutions with assured quality, inspection reports, and fast availability
.avif)
Download Section
Access technical documentation and resources
HUBMAX Li-Ion 2.5 Ton Hand Pallet India
Built specifically for Indian warehouses with regular pallet cycles, the HUBMAX 2.5T pallet truck offers smooth manual lifting, stable load movement, and effortless maneuverability even in tight aisles. Its reinforced steel chassis, high-strength hydraulic pump, and precision-engineered components ensure reliable performance with minimal operator effort. Made to withstand daily wear, it reduces maintenance needs and provides long-term durability across FMCG warehouses, 3PL hubs, retail stores, and manufacturing environments.
Gain 25–35% More Storage
Store two pallets deep to increase usable storage without expanding your warehouse footprint.
Reduce Aisle Width & Boost Throughput
Optimised for narrow aisles — fewer travel cycles and faster pallet turns.
Lower Cost per Pallet Position
Higher density reduces overall racking and facility costs per pallet position.
Reinforced Pantograph & Stability
Heavy-duty pantograph reach with precision rollers and reinforced guide bearings ensures safe two-deep access.
Cold Storage Ready
Li-ion battery options and sealed components for reliable performance in low-temperature environments.
Ideal for 3PL & FMCG
Designed to handle rapid pallet throughput and variable SKU density typical of distribution centers.
Frequently Asked Questions
HUBMAX Li-Ion 2.5 Ton Hand Pallet
HUBMAX Reach Trucks are engineered for high-density warehouse operations in India, delivering powerful lift performance, precise control, and exceptional stability in narrow aisles. Our reach truck range includes 1.5 Ton, 2.0 Ton, and 2.5 Ton models powered by Li-Ion and Lead-Acid batteries—ideal for electric reach truck applications, multi-shift workloads, and demanding warehouse environments.
The HUBMAX 2.5 Ton Li-Ion Hand Pallet Truck is built for demanding warehouse environments requiring higher load capacity and continuous pallet handling. Its fast-charging Li-ion battery provides strong runtime efficiency for FMCG warehouses, 3PL hubs, distribution centers, and industrial facilities. The 2.5T model offers smooth electric lifting, stable load movement, and controlled handling under heavier pallet load
HUBMAX Li-Ion 2.5 Ton Hand Pallet
Delivering powerful lift performance, precise control, and exceptional stability in narrow aisles
Key Highlights:
✓ Strong Hydraulic Pump
✓ Easy Steering for tight working spaces
✓ Heavy-duty steel frame
✓ Stable handling for pallet movement
✓ For Warehouses, Retail & Manufacturing
Top things to know about HUBMAX Li-Ion 2.5 Ton Hand Pallet
Essential specifications, operating advantages, and application details for informed equipment selection
Long-Shift Li-Ion & Lead-Acid Power
Efficient working hours with low maintenance.
Long-Shift Li-Ion & Lead-Acid Power
Efficient battery options support extended working hours with low maintenance.
Long-Shift Li-Ion & Lead-Acid Power
Efficient battery options support extended working hours with low maintenance.
Long-Shift Li-Ion & Lead-Acid Power
Efficient battery options support extended working hours with low maintenance.
